Conector SMA Mama SMA-KWE PCB adaptor conector 90 grade
Conector SMA Mama SMA-KWE PCB adaptor conector 90 grade - imagine 2
Conector SMA Mama SMA-KWE PCB adaptor conector 90 grade - imagine 3
Conector SMA Mama SMA-KWE PCB adaptor conector 90 grade - imagine 4
Conector SMA Mama SMA-KWE PCB adaptor conector 90 grade - imagine 5
Conector SMA Mama SMA-KWE PCB adaptor conector 90 grade - imagine 6
,

Conector SMA Mama SMA-KWE PCB adaptor conector 90 grade

Availability:

În stoc

Add to wishlist

7,00 lei 13,00 lei

În stoc

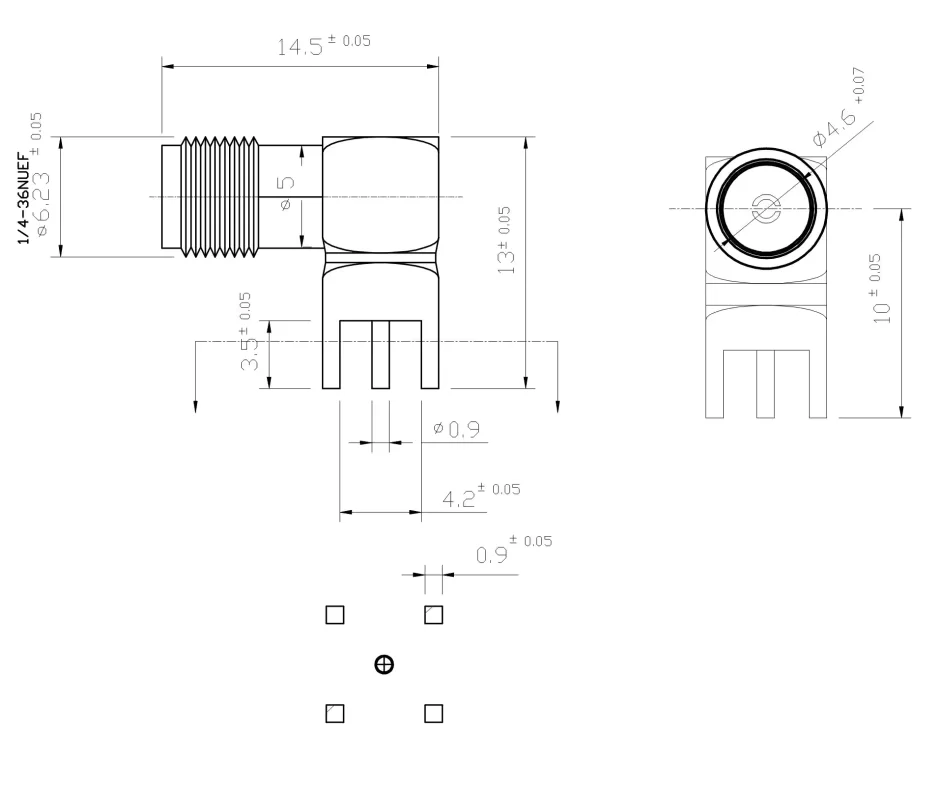

Conector SMA Mama SMA-KWE PCB adaptor conector 90 grade

  • Gold plated PCB SMA
  • SMA-KWE 90 grade
  • Impedance: 50Ω
  • Frequency Range: DC-6GHz
  • Working Voltage: 335 VRMS(max at sea level) Dielectric Withstanding Voltage: 1000 VRMS(min at sea level)
  • VSWR: Angled R/A: ≤1.3
  • Contact Resistance
  • Inner: 3 milliohms (max max)
  • Outer: 2 milliohms (max max)
  • Insulation Resistance 5000 megohms (min min)
  • Temperature Range: -55～+155℃
  • Trial technical standard: MIL-C-39012; CECC 22110; IEC 60169-15.
SKU: SMAFJV3 Categorii: ,
Greutate1 kg
Tip_produs

Conector SMA, Consumabile si Piese
